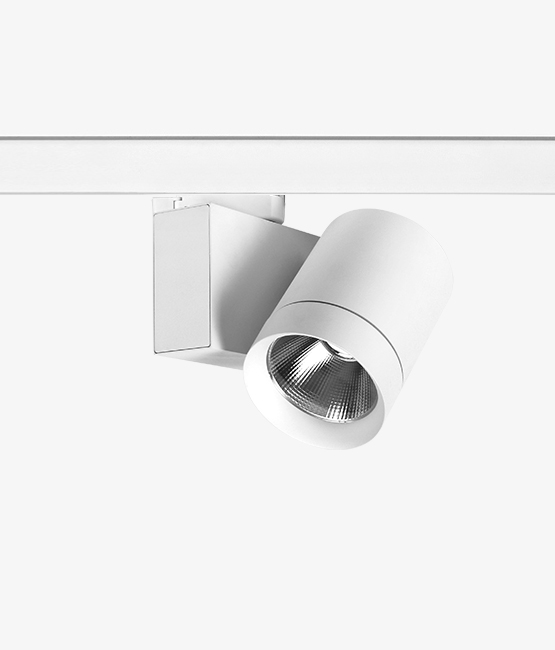

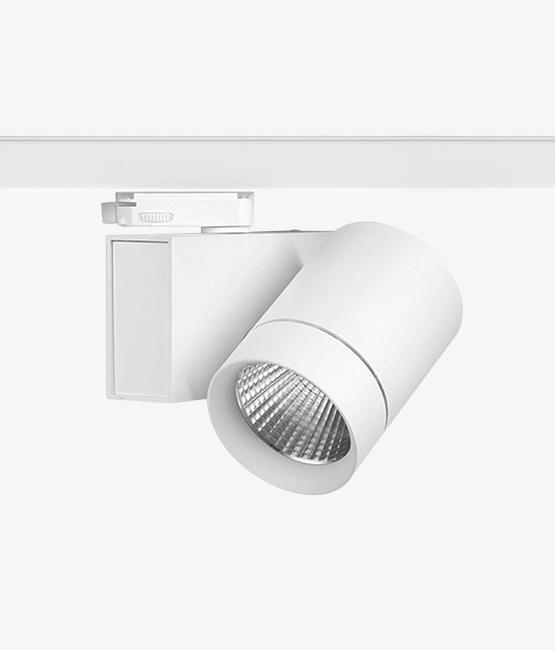

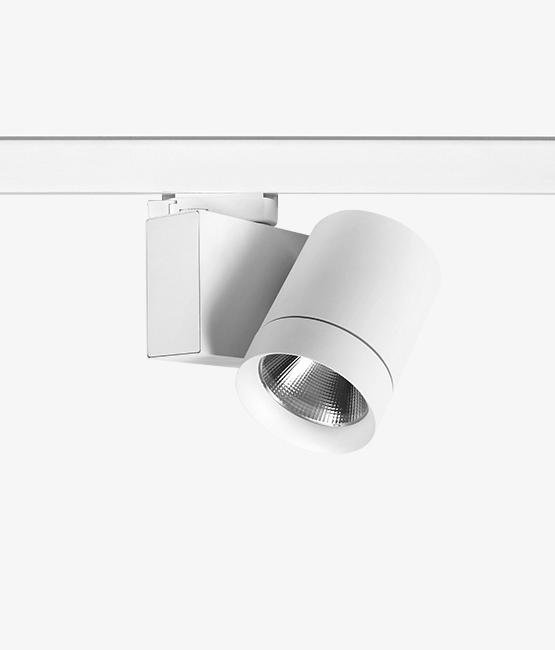

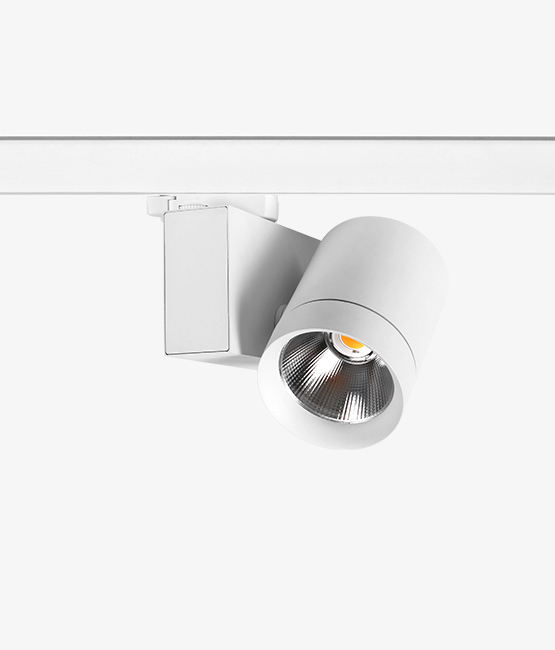

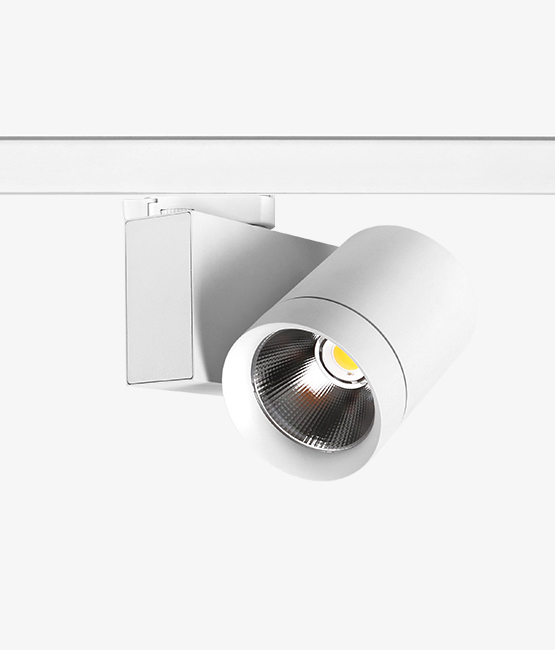

Led track light heads COB 20W track spotlight super manufacturer

$345.00

Infero Hori

Weight 1 kg
15°
24°
40°
3000K
Black
White
Clear
SKU: N/A Category:
You are responsible to clear duties and VAT on all purchases made on DOBAC LED. This can be done through the duties and VAT clearance procedure of your local customs authority in your country of residence.
Description
Purchase
Code
Luminaire
Power [W]
Luminaire
Lumen [lm]
Color
Temperature [K]
Beam
Angle [°]
CRI
[Ra]
020.015.3000.90 20 1820 3000 15 >90
020.024.3000.90 20 1970 3000 24 >90
020.040.3000.90 20 1660 3000 40 >90

Description

Led track light heads – Track spotlight

Led track light heads COB 20W track spotlight super manufacturer

led track light heads COB 20W AC is a specially designed with a simple,elegant style to complement and home interior which features a classic simple white or black finish adding warm and welcoming diffused light.The durable with solid good heat distribution aluminum construction ensures that this led track light fixture will continue to perform well.

The lamp can provide good general lighting in shops, galleries, hotels, and the home, where you want fantastic lighting, and the opportunity to form focus points.

led track light heads Infero Hori can highlight the color and luster of the object, making the object more eye-catching and attractive. 350-degrees horizontal rotation and 90-degrees vertical rotation,It has a 3-phase adapter that fits the track; it is available in several lengths and different powers . You can select just the number of spots you want and need.Purified Aluminum reflector makes accurate and clear lights. Fully enclosed backing prevents light leaks, including front cover to reduce glare.led track light heads is non-dimmable standard ,and different dimming control option such as Triac,1-10V ,DALI 2.0 ,please consult with sales for more details or information.

Each led track light heads packed in a inner box.

8-10 pcs inner boxes are put in a master carton

Packing straps used to make sure the master carton will not be damanged during transportation.

DOBAC LED, provide 5 years warranty service,adopted lastest version LED chip andpower supply product from top brans to ensure good light effect and long-life-span.

DOBAC LED,provide 24 hours online consulting services,if you need more support,please feel free to cotnact with our professional sales team.

Features and Benefits

  • SDCM:<3
  • CCT: 2700K, 3000K,4000K
  • CRI: >80,>90,>97 S
  • Supply Voltage:100-240V 50/60Hz
  • Control:On/off,DALI,Cut Phase,1-10V for option
  • Style:3-Phase track
  • Power source:DC LED famous driver brand
  • Wattage:20W
  • Luminous Flux:1800-2000lm
  • Beam Angle:15 °24° 40°
  • Horizontal Rotation:350°
  • Vertical Rotation:90°

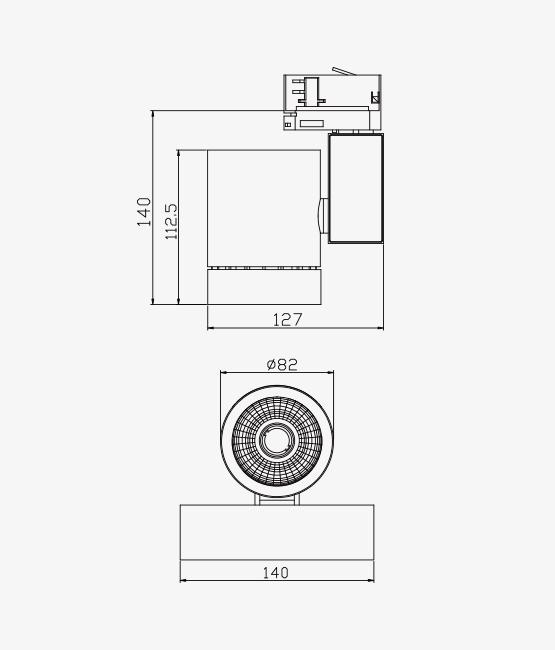

  • Light Head dimension:dia82*112.5 mm
  • Certificate:CE & RoHs
  • led track light heads led track spotlight
  • led track spotlight manufacturers in china
  • Non-standard specifications,please consult with us for more support.

Download and Resources

Photometric test report

Specification sheet

Installation instructions
